 Ejector... for gasifier testing and such

View previous topic View next topic Go down
AuthorMessage
tritowns



Posts : 267
Join date : 2013-12-03

PostSubject: Ejector... for gasifier testing and such   Sat Jul 18, 2015 2:16 am

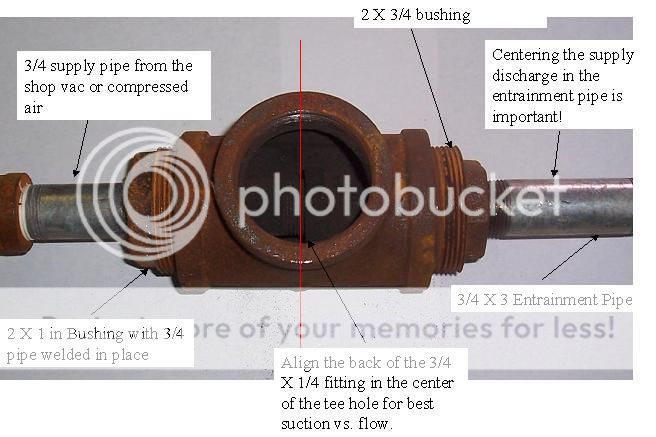

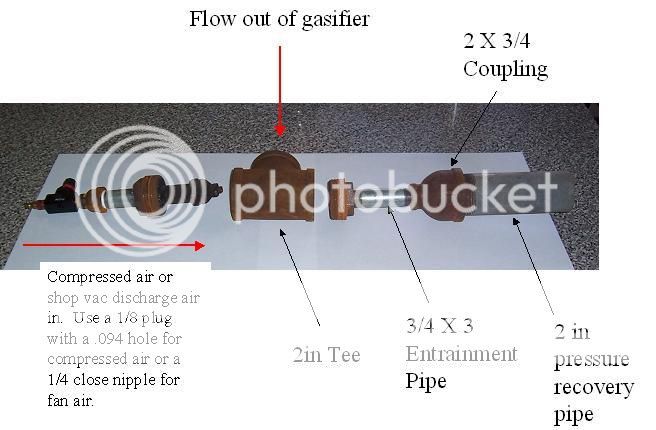

Here are some pics of an ejector that can be used when testing a gasification system instead of developing a full cooler filter train just to see if you're making wood gas.

This is from my friend Stephen Abaddess.
